- Gently and precisely braces and supports door casing during foam filling of wall joint
- Telescopic square anodised aluminium tubing with mm scale and adjusting screw for precision work
- Cross-shaped pressure plate with interchangeable clamping elements for frame depths of 6 to 13 cm or 13 to 30 cm
Product information
Door frame assembly with system
Door frame assemblies using assembly foam require special tools that enable precise alignment and support. And BESSEY offers a solution for precisely this: a door frame assembly system with perfectly coordinated clamping tools.

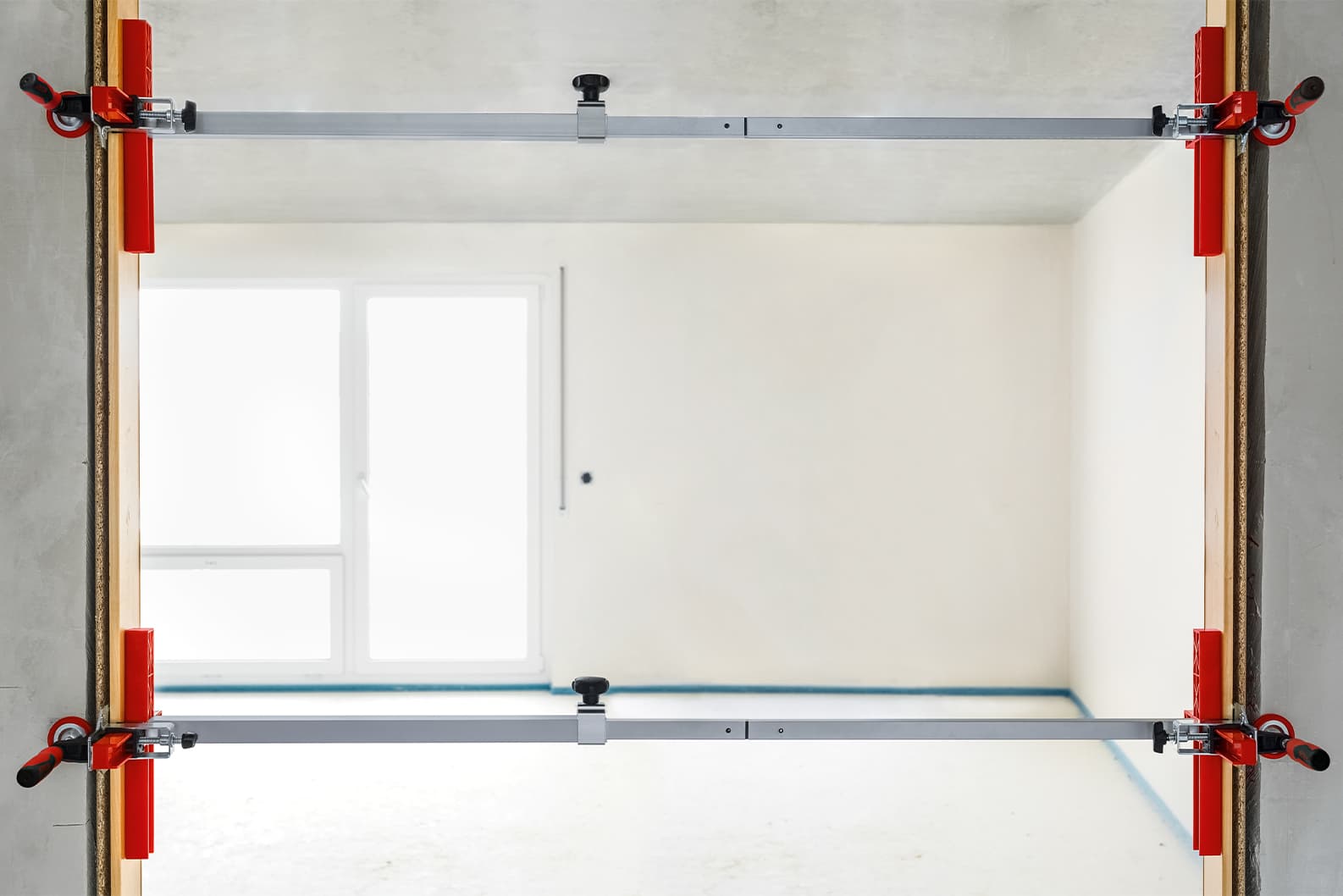

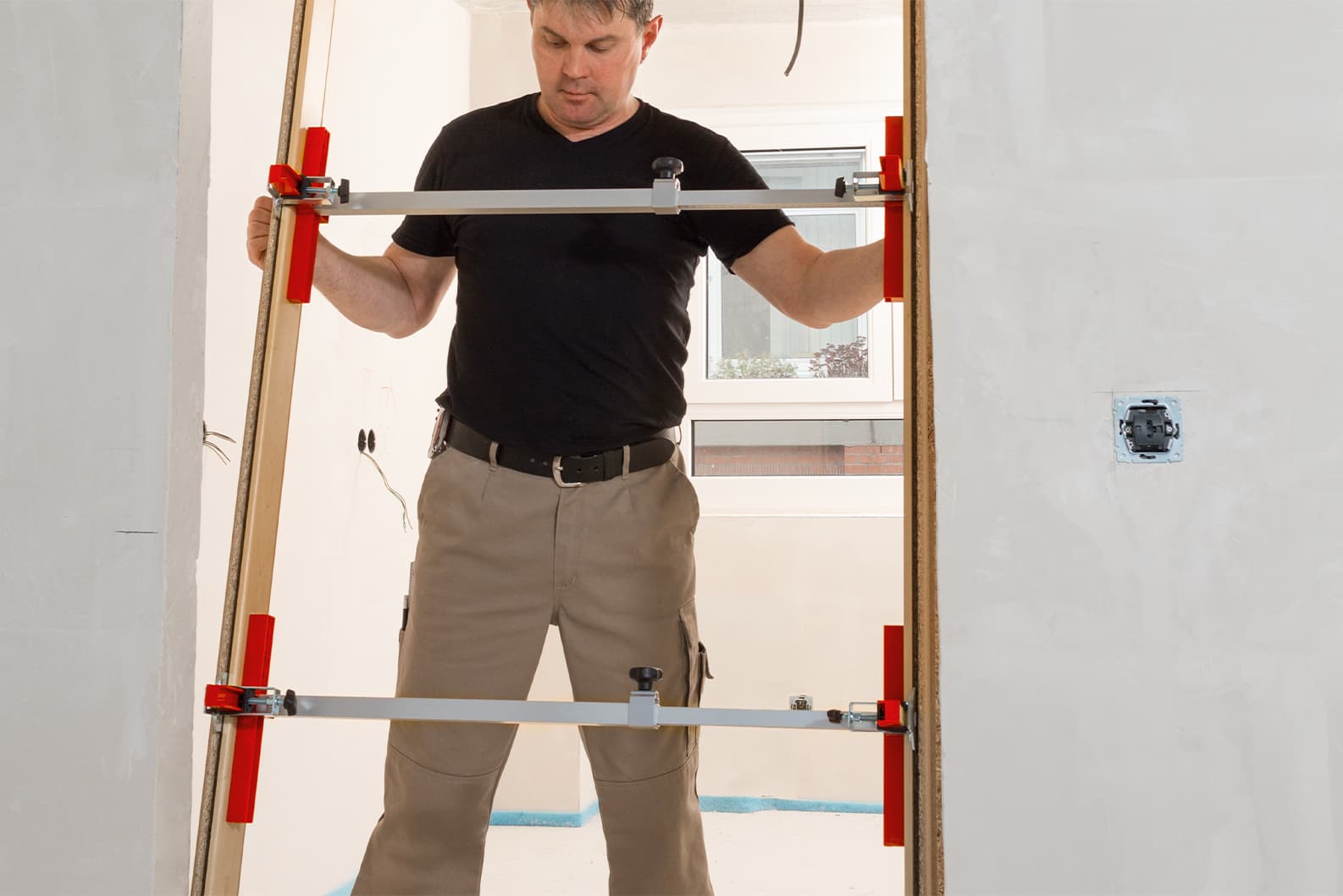

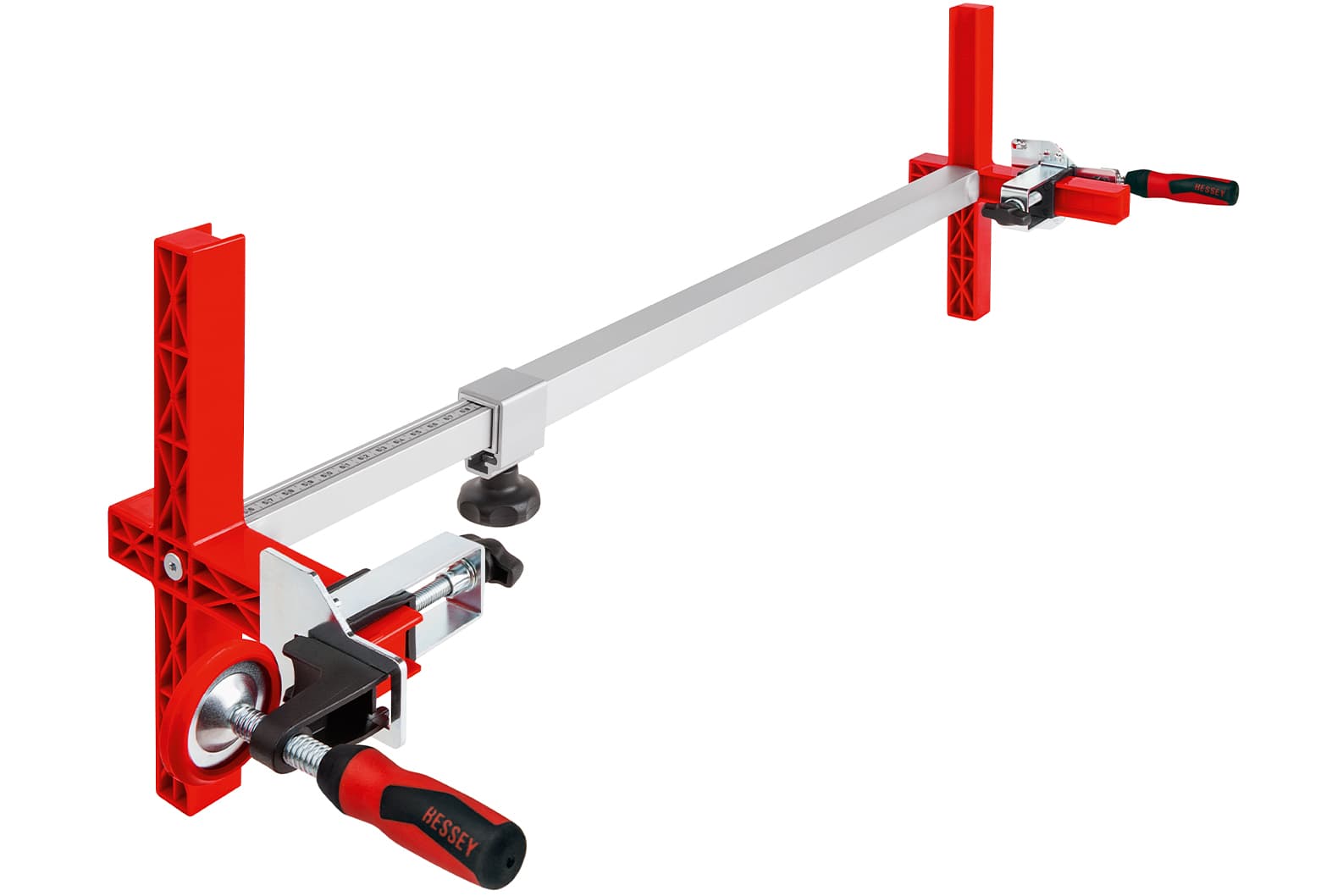

The door frame clamp TU gently and precisely secures the door frame while the wall joint is being filled with foam. It is designed for millimetre-precise door width measurements from 56.5 to 101 cm. Its reversible clamping brackets with a large clamping surface and removable extension arm enable comfortable working. The clamping brackets can be converted to adjust frame depths from 6 to 13 cm and from 13 to 30 cm individually and variably.
BESSEY also has a solution for installing barrier-free doors with ...Watch our product video
Door frame installation tools TU / TUX /TFM-2K / WTR perfectly coordinated Video
